Models fleet

The Port Revel fleet is made up of twelve manned models and five radio-controlled tractor tugs.

Six of the manned models represent at scale real oil tankers or bulk carriers ranging from 38 000 to 400 000 dwt.

Download the technical document - pdf (539ko)

The seventh is a replica of the liquid natural gas (LNG) carrier "Ben Franklin" (125 000 m3), as from 2013 with Controllable Pitch Propeller

Download the technical document - pdf (111ko)

The eighth is a replica of a 4 400 TEU post-panamax container ship, the "CGM-Normandie".

Download the technical document - pdf (111ko)

The ninth ship, introduced in 2009, is a model of the "CMA CGM Otello", a large 8 500 TEU container ship.

Download the technical document - pdf (75ko)

The tenth ship, introduced in 2010, is a "Q-Max", a large 266 000 m3 LNG carrier.

Download the technical document - pdf (210ko)

The "Voyager" is a cruise ship, that is available since 2014. She is 311 m long (Loa) and will be fitted with 2 azimuthing pods (and one Fixipod) and powerful bow thrusters.

Download the technical document - pdf (90ko)

The model made in 2016 is the "Cruise/Max", cruise ship made with the hull of the Q/Max but with the bridge at the bow and twin screw with Becker rudders. She is available since April 2016.

The last ship is the Sport Revel Spirit, a container carrier, that is available since 2019. The 6th 1:25 scale manned model made by the iXblue shipyard in La Ciotat.

All models but the Normandie, the Voyager and the Otello are fitted with diesel motor and steam turbine, and the Normandie can be controlled from the front deck like a car carrier and a cruise ship, so that the fleet in fact reproduces 22 different vessels.
The Voyager is fitted with two azimuthing "pods" and powerfull bow thrusters in order to reproduce the behaviour of a cruise ship.

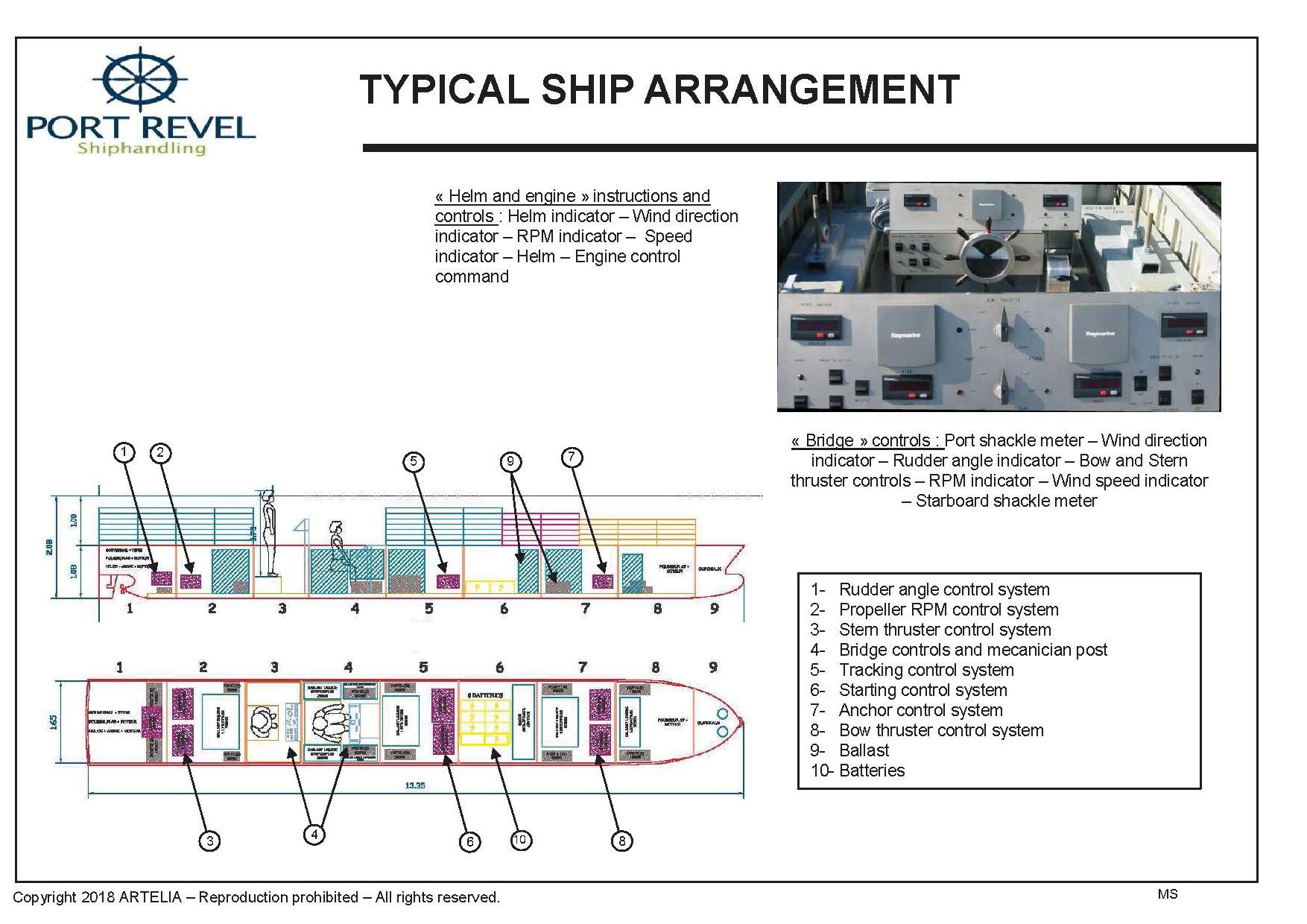

Typical ship arrangement - Port RevelEnlarge the picture
The fleet consists of 12 scale models, the "ships" and 5 tugs. Most of them represent real ships with their corresponding characteristics (engine acceleration rates, etc).

  • Several ships can have different set conditions: diesel motor or steam turbine, additional bridge at the bow, various loading conditions.
  • Each ship is fitted with two fully operational anchors and a bow thruster (and in some cases a stern thruster).
  • Each ship is fitted with appropriate instrumentation (wind speed and direction, log, rpm, rudder angle, paid out anchor-chain indicator).
  • Five ships are fitted with a DGPS centimetric tracking system.
  • One ship is fitted with an optional Schilling rudder, and three other with an optional Becker rudder.
  • Two ships are fitted with two pods, for one it's an option. This means that ship can be fitted either with a conventional rudder / propeller or with two pods.
  • Five fully operational tugs (one ASD, one VSP, one VSP with Turbo Fin, one Carrousel tug and one CERRO) are available.
  • The ships are accurately constructed to conform with the principles of similitude and are fitted with indicators showing the ship's parameters. Information given by the indicators are at full scale. Most models are fitted with diesel motor and steam turbine, and the Normandie can be controlled from the front deck like a car carrier , a cruise ship, so that given the various possibilities available for loading and modifying the ships.
  • The fleet in fact reproduces over 23 different vessels at the same scale, 1/25ème and allowing a variety of exercises for 8 to 10 participants working simultaneously.
  • Each model is designed so that the Master or Pilot is at bridge level. He gives out his instructions to the "crew", i.e. the helmsman, who steers the ship and operates the engine room telegraph. An instrument panel imparts continuous full scale indications of propeller rpm, rudder angle, ship's heading and speed, wind velocity and direction.
  • The sliding cover is positioned to correctly reproduce the effect of wind.


100% of participants satisfied to the similarity
!

Port Revel models

Tanker

Tanker at Port Revel

Container

 Container at Port Revel

LNG Carrier

LNG Carrier at at Port Revel

Cruise ship

Cruise ship at Port Revel

Port Revel models Tugs

Voith Schneider Tug

 Voith Schneider Tug at Port Revel

ASD Tug

ASD Tug at Port Revel

Carrousel Rave Tug

Carrousel Rave Tug at Port Revel



Cerro Aquamaster Tug

Cerro Aquamaster Tug at Port Revel



Introduction of the model tugs in our courses is a major advance as it allows experimentation with emergency ship handling when mechanical failures occur on ships:

  • rudder failures
  • engine failures



Two tugs were introduced in 2000 at the request of several US pilotages. A third tug was introduced in 2006 and includes the Voith Schneider Turbo Fin.
Carrousel  Rave Tug was introduced in 2015 and in the same time, the Cerro an aquamaster tug.

One of the tugs is an Azimutal Stern Drive (ASD) with a Z-peller propulsion system. Two tugs have Voith Schneider propulsion (VSP). They can provide a bollard pull of over 100t, but are usually set to 50 to 70t.

The tugs are of course also at scale 1:25 ... Can you imagine working with a model ship at one scale and a tug at another scale ??!

The tugs are remote-controlled by a professional tug master at the pilot's orders.

This is not reproduced on numerical simulators ... nor are the typical tug manoeuvres: pure and powered indirect modes, jackknife, push-pull, driving and flying to steering position, etc.

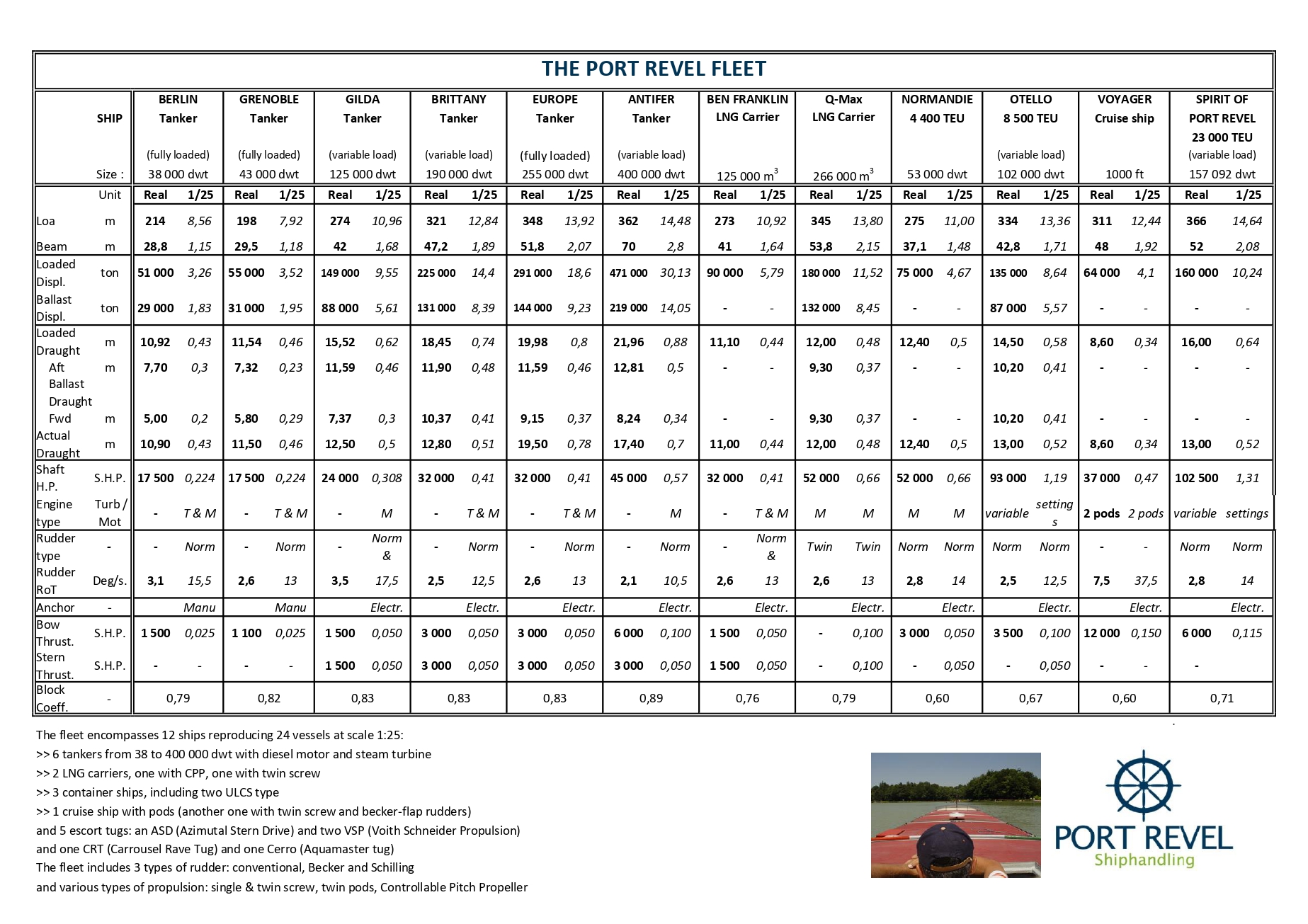

Find below our fleet characteristics:
